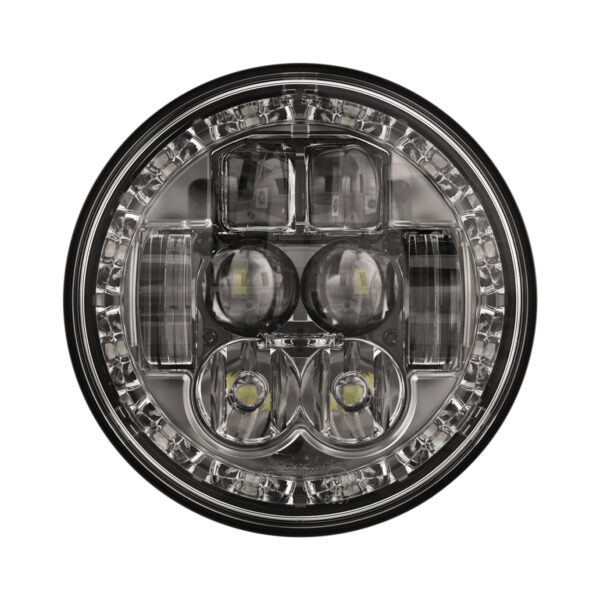

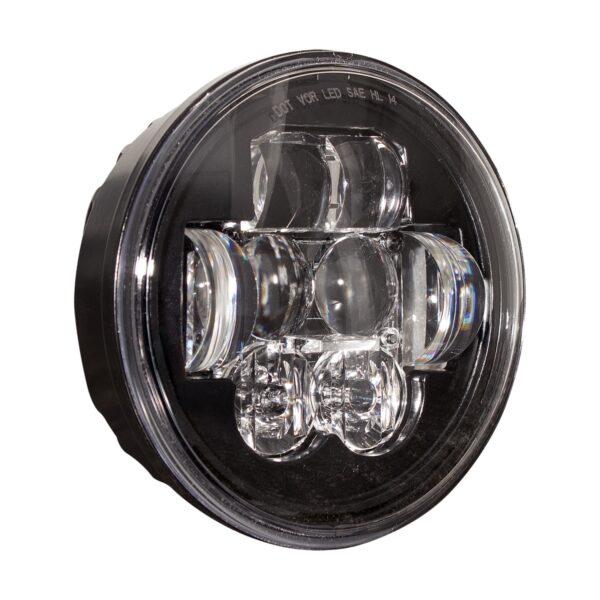

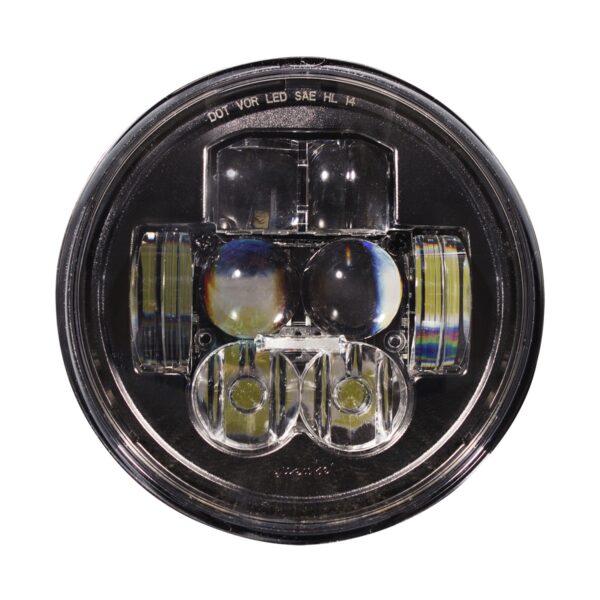

Model 8630/8631 5.75″ LED Headlamp

CAD $435.14 – CAD $526.74

Available : instock

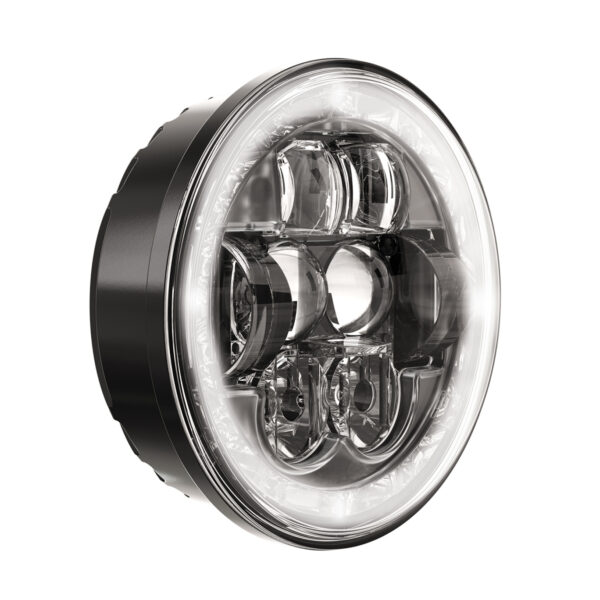

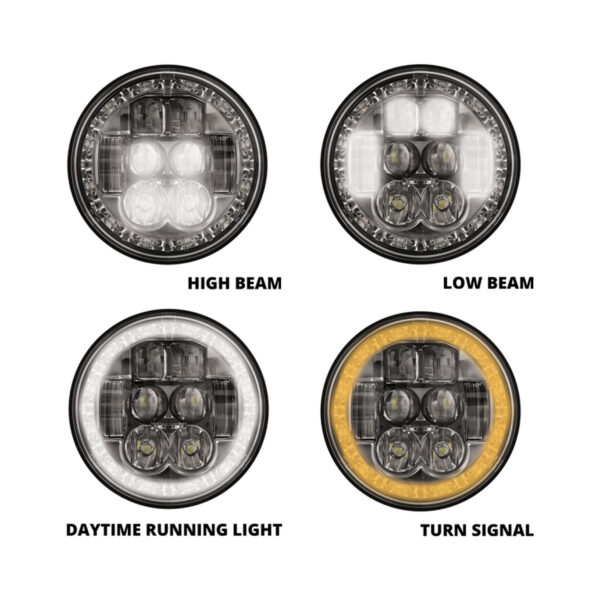

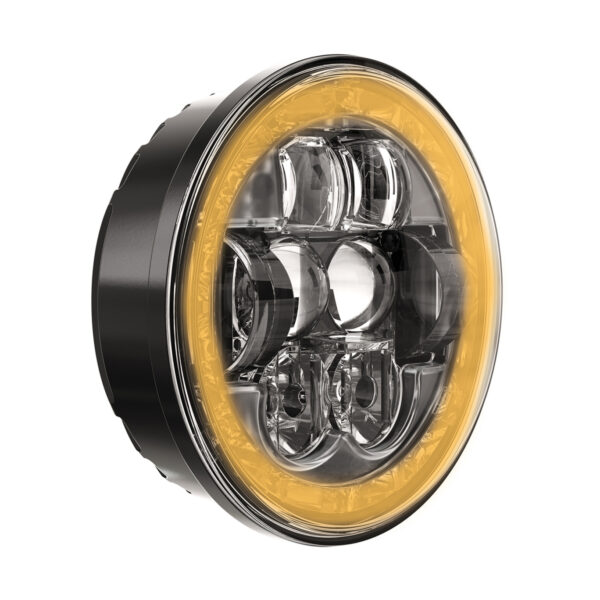

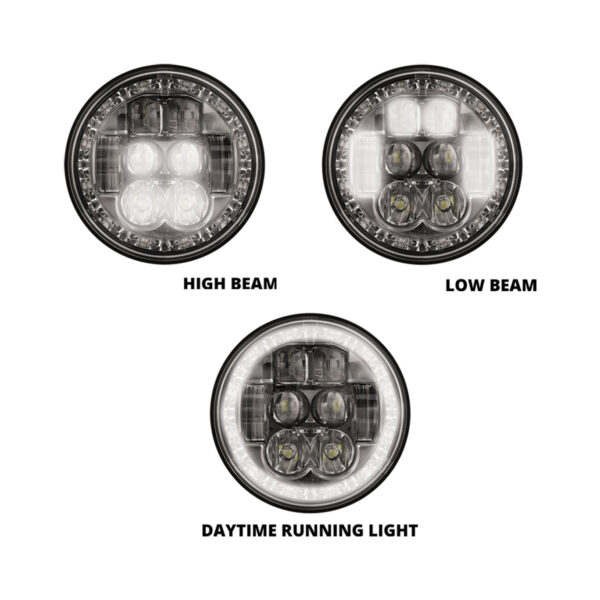

Designed for OEMs and aftermarket customers alike, the Model 8630 Evolution offers an upgraded replacement solution for H5006 5.75″ (PAR46) sealed beam headlights. Available with optional white or white/amber halo ring DRL. Sold individually. Choose the model and options from the drop down menu below.

Clear
- +
Add to Wishlist
Compare
JW-Model8630/1

Description

Model 8630 Product Specifications:

  • Raw Output: 2,025 (Low Beam), 2,925 (High Beam)
  • Effective Output: 630 (Low Beam), 1,000 (High Beam)
  • Input Voltage: Available in 12-24V configuration
  • Current Draw: 2.20 (Low Beam), 3.50 (High Beam) @ 12V DC
  • 1.10 (Low Beam), 1.70 (High Beam) @ 24V DC
  • Lens Material: Polycarbonate
  • Mounting: Retrofits H5006 sealed beam headlamps
  • Connector: Delphi 6 Pin Metri-Pack 120 (#12052848)
  • Warranty: 5 Year Limited Warranty
  • Standards: DOT & SAE Compliant, FMVSS108,
  • CMVSS108, Sealed to IP67

Additional information

Weight 3.2 lbs
Dimensions 11 × 10 × 7 in
DRL HALO/.TURN

, ,
